Quad Lock Motorcycle Phone Mount Brake Clutch Brake Reservoir Handlebar Clamp Bolt Mount PRO

PRODUCT OVERVIEW

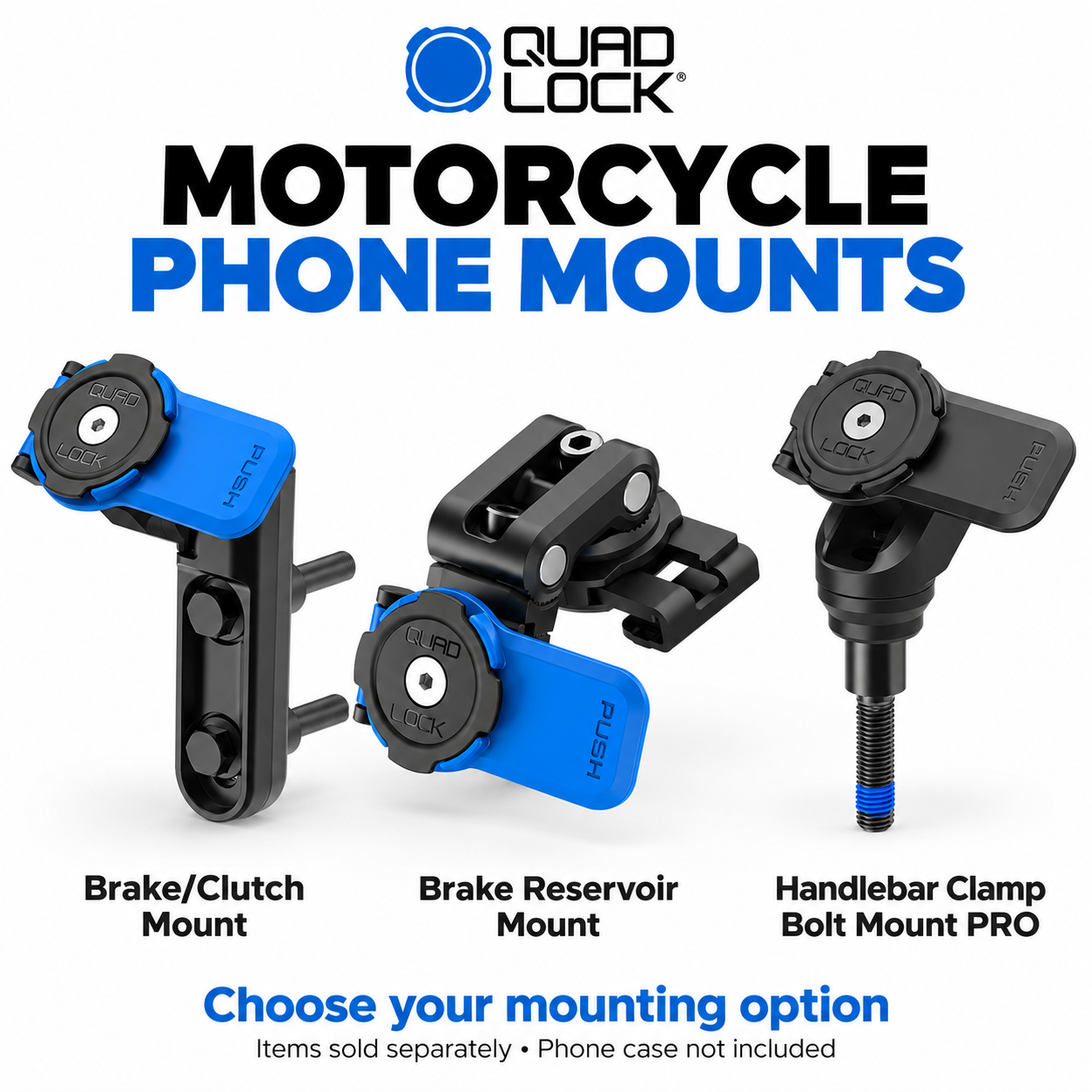

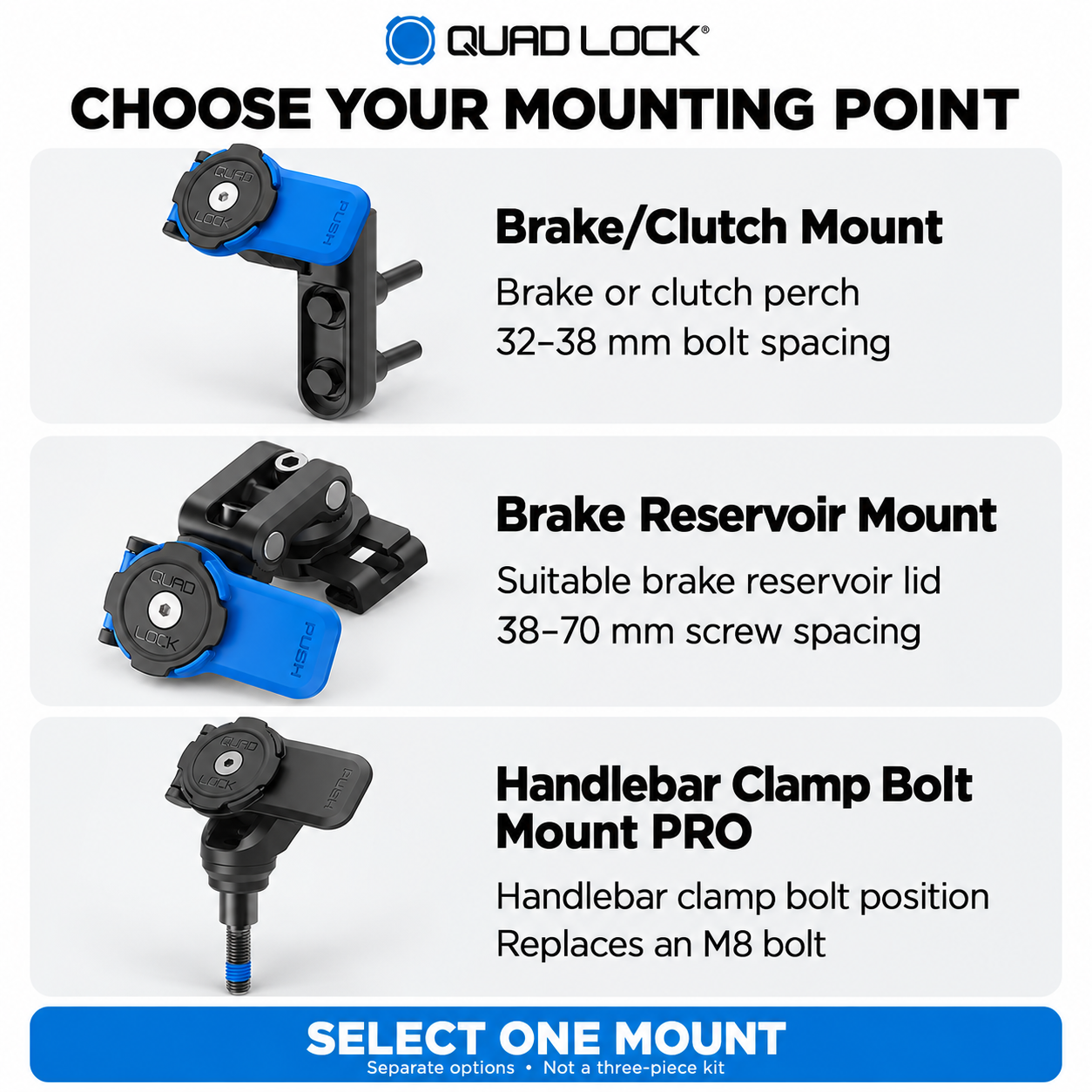

Choose a Quad Lock phone mount to suit your motorcycle or scooter’s mounting location. This listing offers three separate options for installation on a brake/clutch perch, a suitable brake reservoir lid, or an existing M8 handlebar clamp bolt position.

Each purchase includes the selected mount and its listed installation accessories. These options are not supplied together as a three-piece kit.

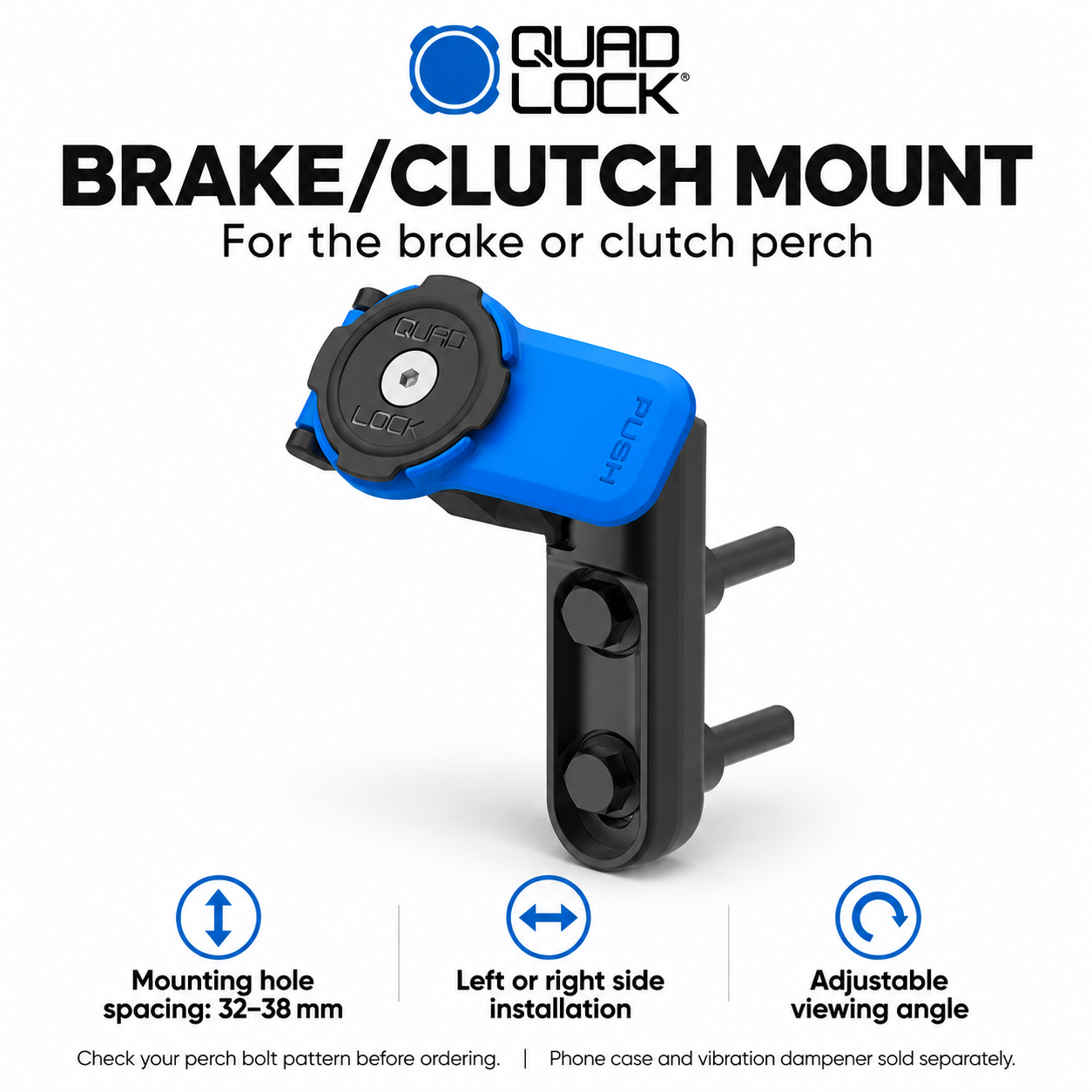

BRAKE/CLUTCH MOUNT

Designed for installation on a compatible two-bolt brake or clutch perch. The offset mounting head positions your phone inward, away from the handlebar controls.

Mounting Hole Spacing: 32–38 mm.
Installation Side: Left or right.
Construction: Glass-filled nylon with an anodized die-cast aluminium base.
Adjustment: Rotating head with tilt adjustment.
Release Lever: Blue.

Package Includes:
1 × Brake/Clutch Mount
2 × M6 × 45 mm Serrated Flange Bolts with Threadlocker
2 × UNC 1/4″-20 × 1.75″ Serrated Flange Bolts with Threadlocker
2 × Spacers
1 × Combination 3 mm / 4 mm Hex Key

Check the perch bolt pattern, fastener compatibility and available clearance before ordering.

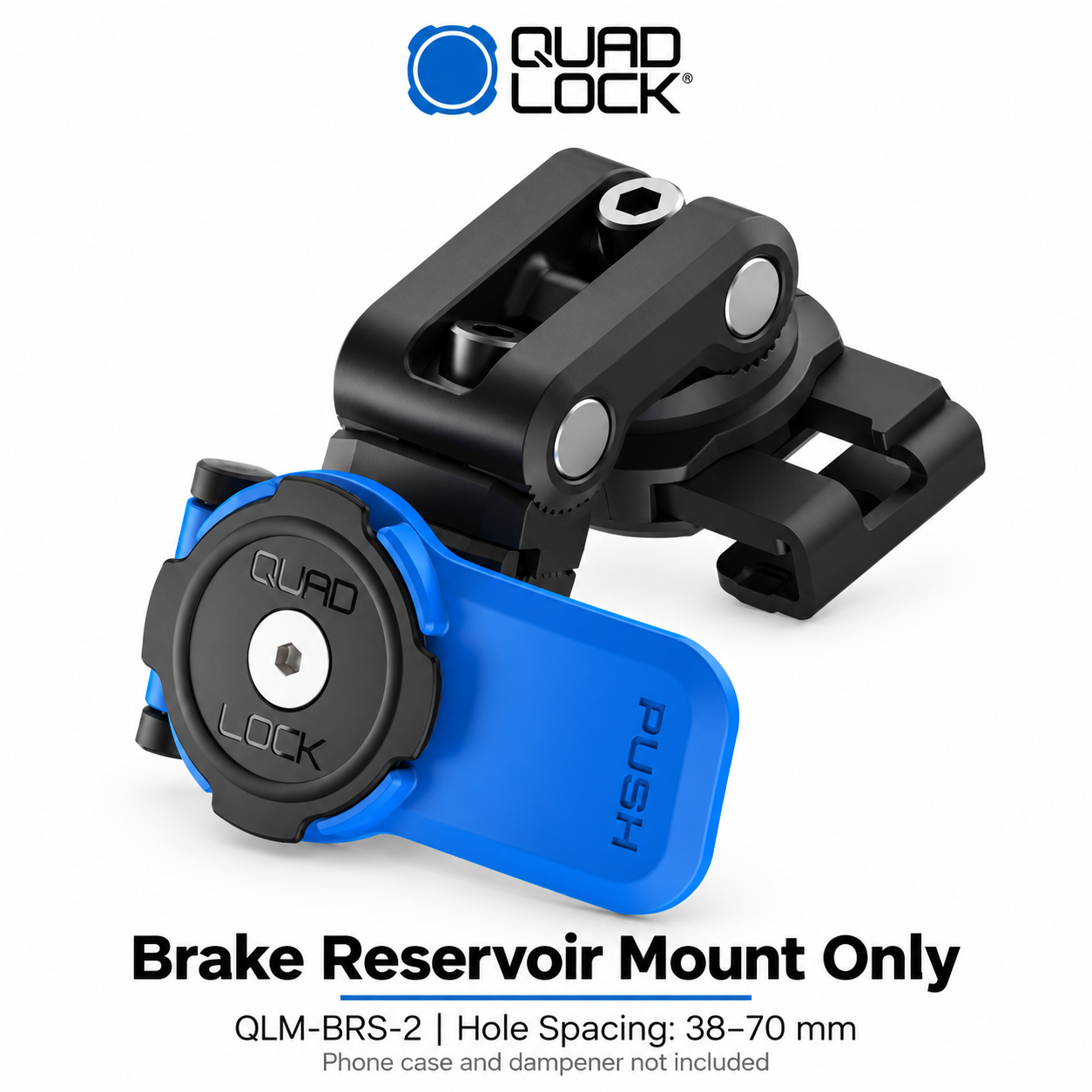

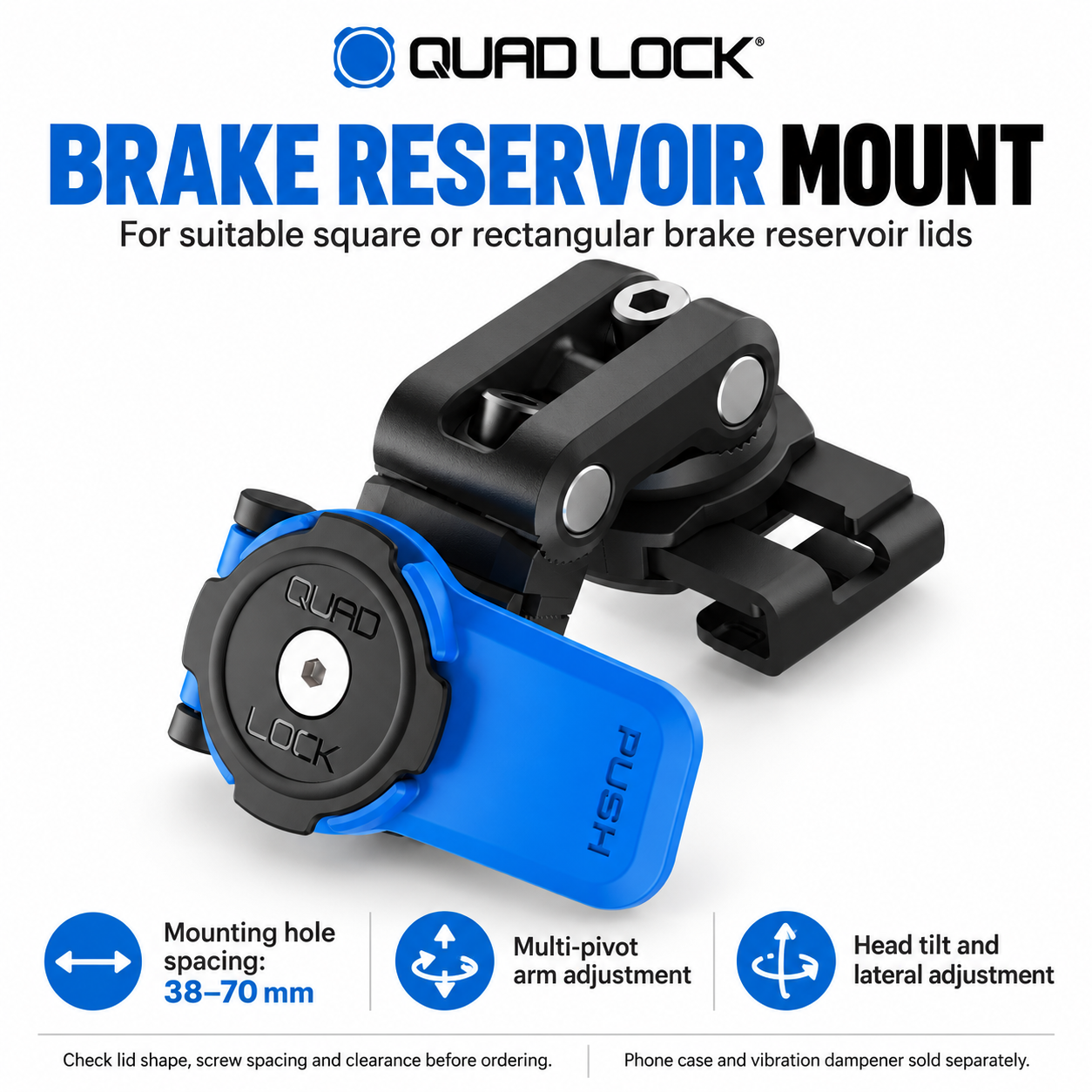

BRAKE RESERVOIR MOUNT

Designed for suitable square or rectangular brake fluid reservoir lids. The adjustable bracket, multi-pivot arm and tilting head help position your phone while maintaining access to the controls.

Mounting Hole Spacing: 38–70 mm.
Construction: Glass-filled nylon with a powder-coated steel bracket.
Pivot Pins and Threaded Inserts: Stainless steel.
Adjustment: Multiple pivot points, head tilt and lateral positioning.
Release Lever: Blue.

Package Includes:
1 × Brake Reservoir Mount
2 × M4 × 16 mm Countersunk Screws
2 × M4 × 18 mm Countersunk Screws
1 × Combination 3 mm / 4 mm Hex Key

Check the reservoir lid shape, screw spacing and surrounding clearance before ordering.

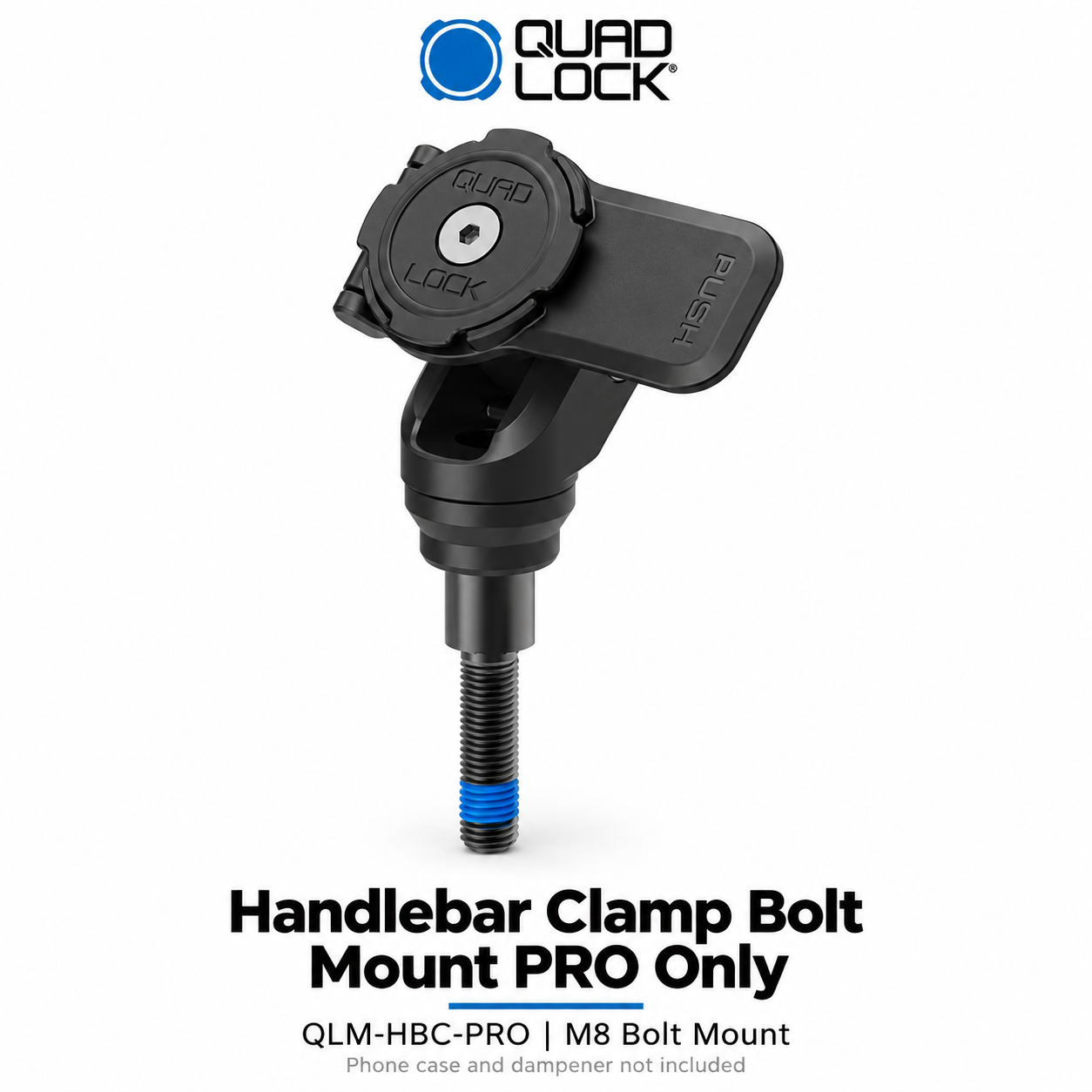

HANDLEBAR CLAMP BOLT MOUNT PRO

Replaces an existing M8 bolt on a compatible motorcycle handlebar clamp. The compact design features a black release lever and an adjustable aluminium knuckle.

Mounting Interface: Replacement M8 handlebar clamp bolt.
Construction: Black anodized CNC-machined aluminium.
Knuckle Adjustment: 135°.
Positioning: Serrated bolt base and spacers help resist rotation.
Release Lever: Black.

Package Includes:
1 × Quad Lock Index Head with Black Lever
1 × M8 Mounting Bolt
1 × 5 mm Serrated Spacer
1 × 10 mm Serrated Spacer
1 × Offset Knuckle Adaptor
1 × Hex Key

Check the original bolt specification and mounting clearance before ordering.

IMPORTANT INFORMATION

A compatible Quad Lock phone case or universal adaptor is required and sold separately.

Phones, phone cases, universal adaptors, vibration dampeners and charging accessories are not included.

Select the required mounting style before purchasing. Vehicle compatibility depends on the installation interface and available clearance.

Follow the supplied installation instructions and the motorcycle manufacturer’s tightening specifications. Confirm that the mount does not obstruct steering, controls or instruments, and check that your phone is fully locked before riding.
